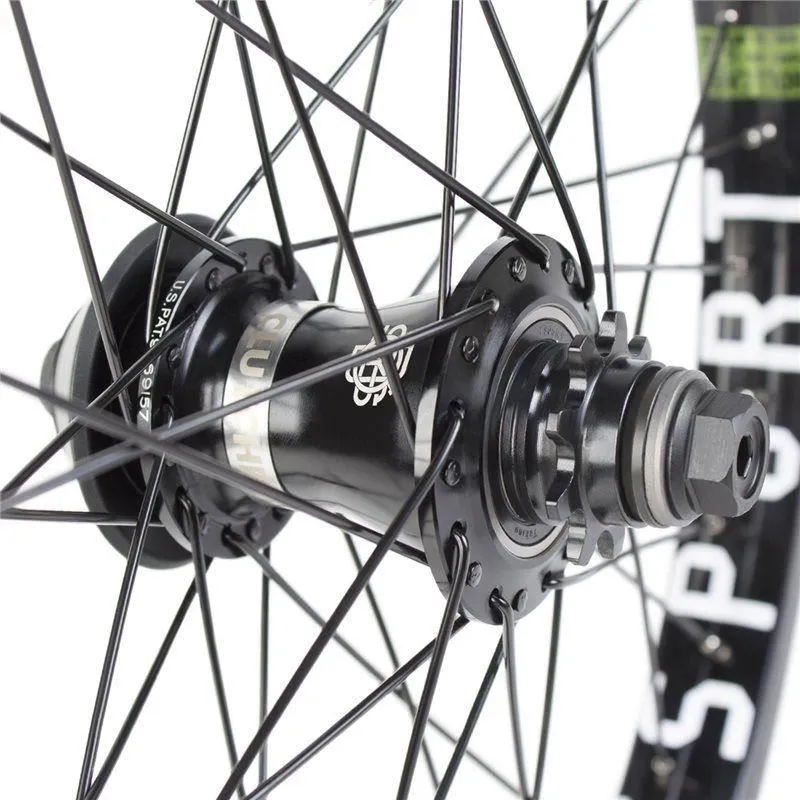

The G-Sport Clutch Hub is a traditional clutch-based coaster hub design that eliminates all of the problematic elements on ordinary hubs and only keeps the parts that work.
A new, super-strong Full 14mm axle, bearing configuration, and drag mechanism design stops the need for constant repairs. Equipped with external slack adjustment, which can be done with a 2.5mm hex key through a hub shell access hole (can be adjusted without removing the wheel), and an improved plastic hub guard spec.

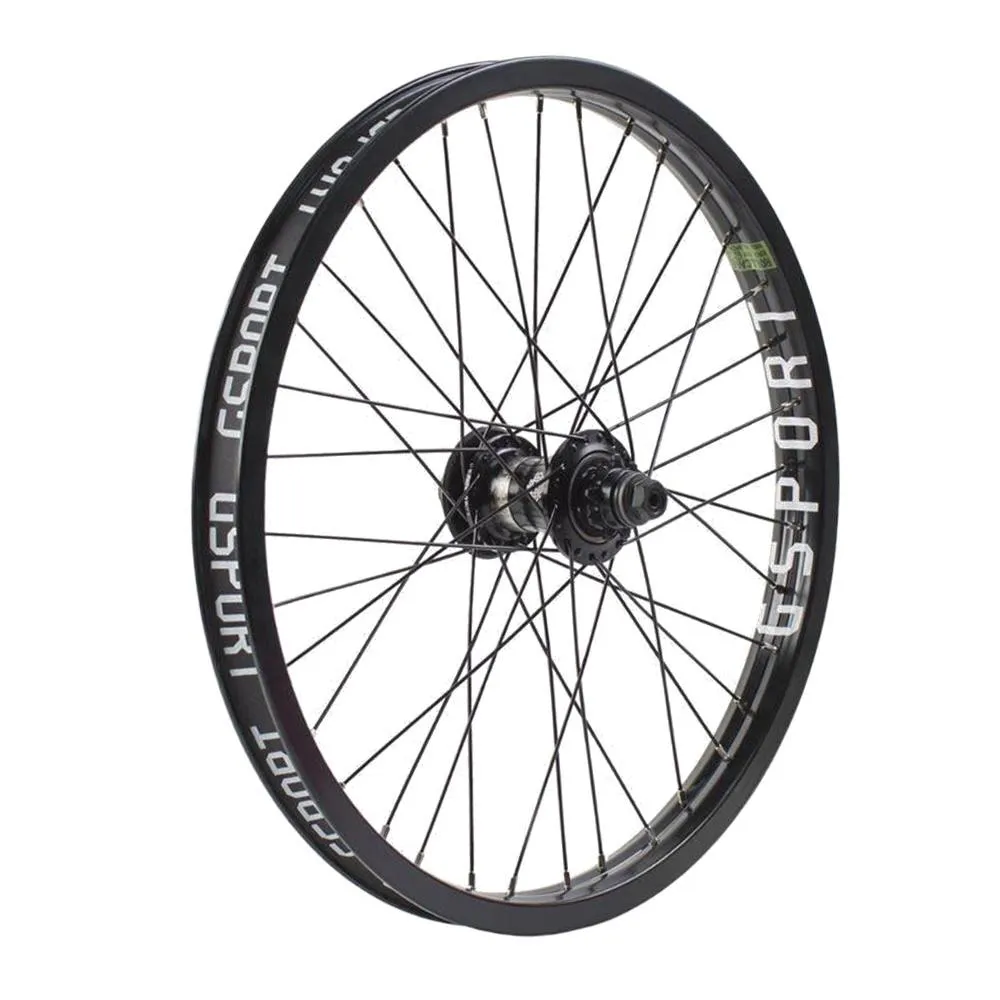

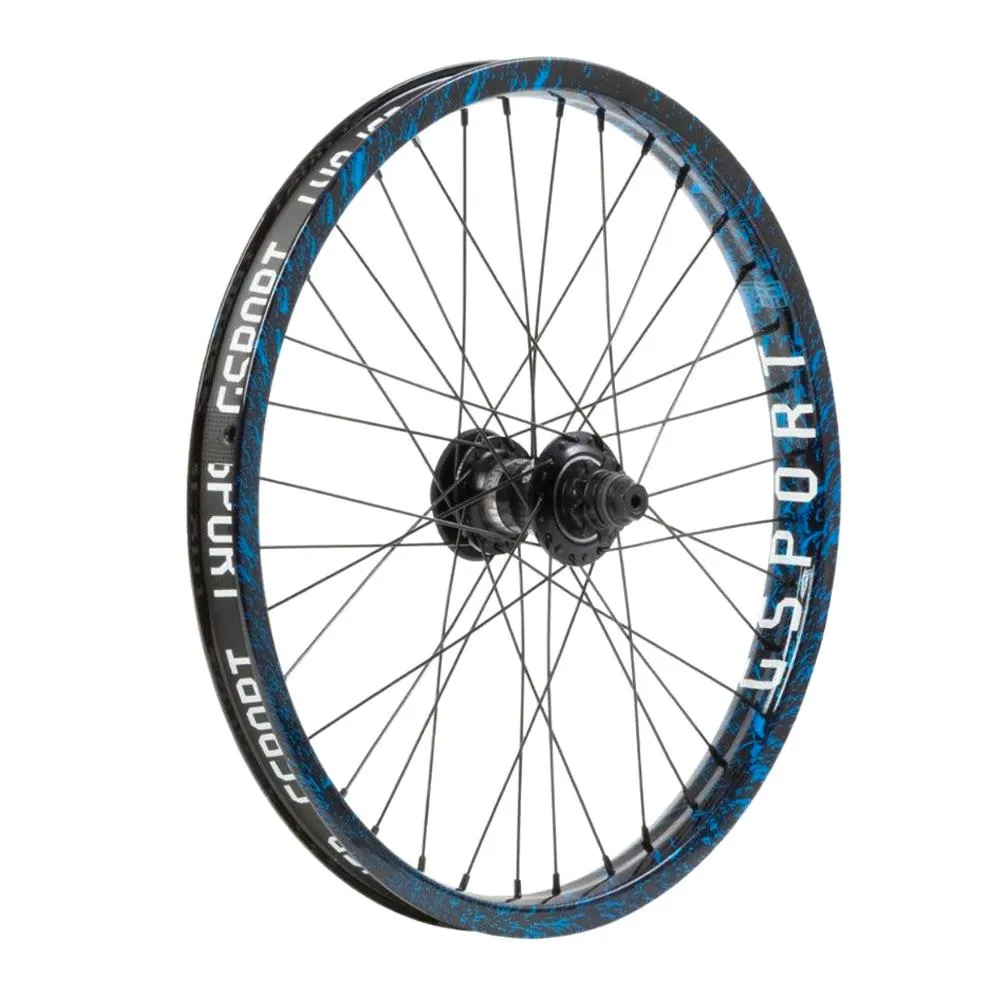

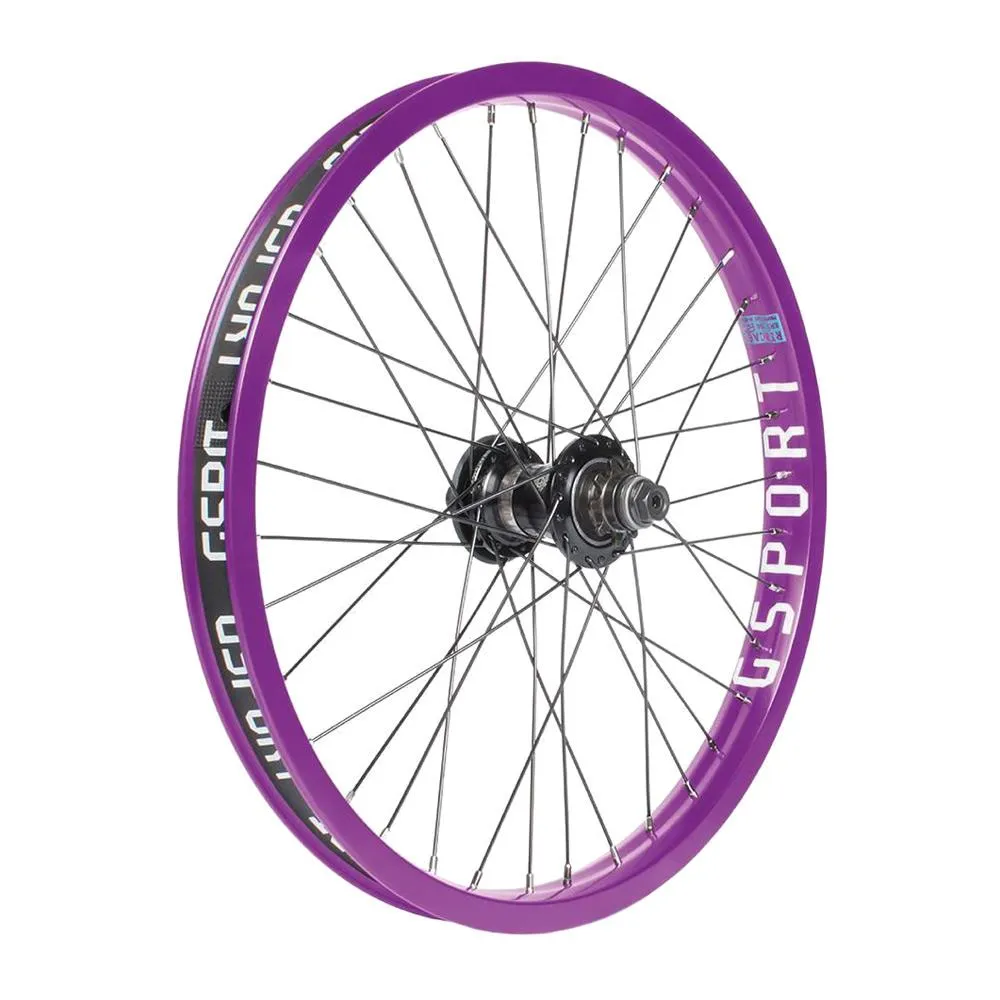

The Clutch V2 is laced to the G-Sport Ribcage Rim. At 500 grams, the strength to weight ratio of the Ribcage cannot be matched. The entire design revolves around the use of a proprietary high strength aluminum alloy made specially for&G-Sport in an on-site foundry. It is a lightweight rim that can take anything you throw at it. With the Ribcage, the spoke holes are re-enforced with patented ribs that support the sides of each spoke nipple and eliminate the possibility of nipple pull through under even the highest loads.
The rim also features cross-over-spoke lacing, where each spoke goes from one side of the hub to the opposite side of the rim for an increased angle and therefore increased lateral strength. The outer walls are extra thick to protect against case dents, while the other walls are extra thin to keep it light. The 36mm width and 18mm height are also major factors in the design, spreading out the impacts and maximizing resistance to pinch puncturing.
###section###
Product Specs
- WHEEL SIZE: 20"
- HUB: Odyssey Clutch V2 Freecoaster
- AXLE: 14mm Chromoly Male
- DRIVE SIDE: Right Side Drive
- RIM: G-Sport Ribcage
- SPOKES: Butted
- NIPPLES: Brass
- WEIGHT: 1389g / 49oz
