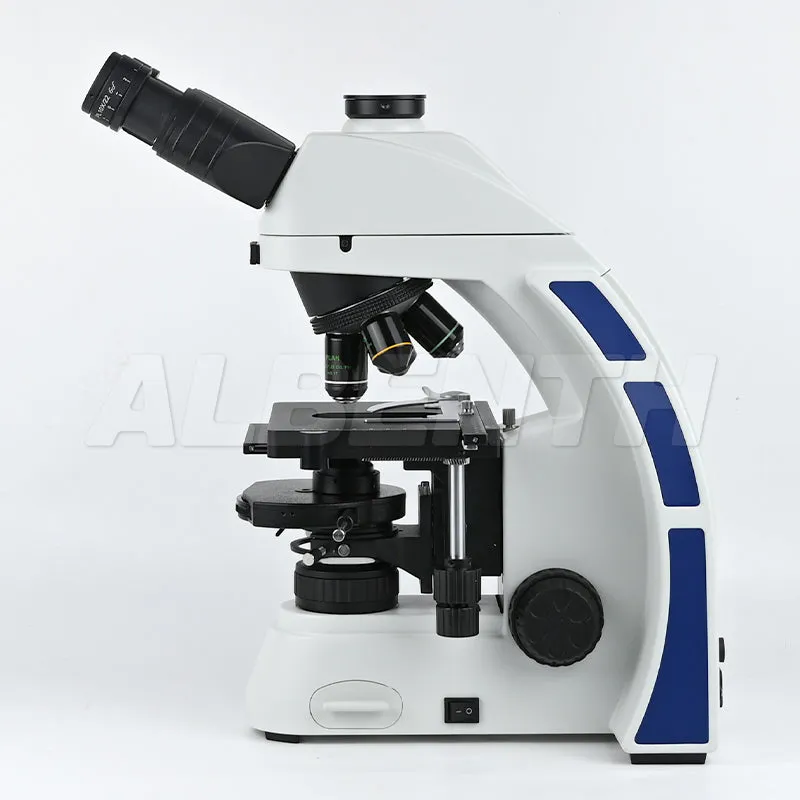

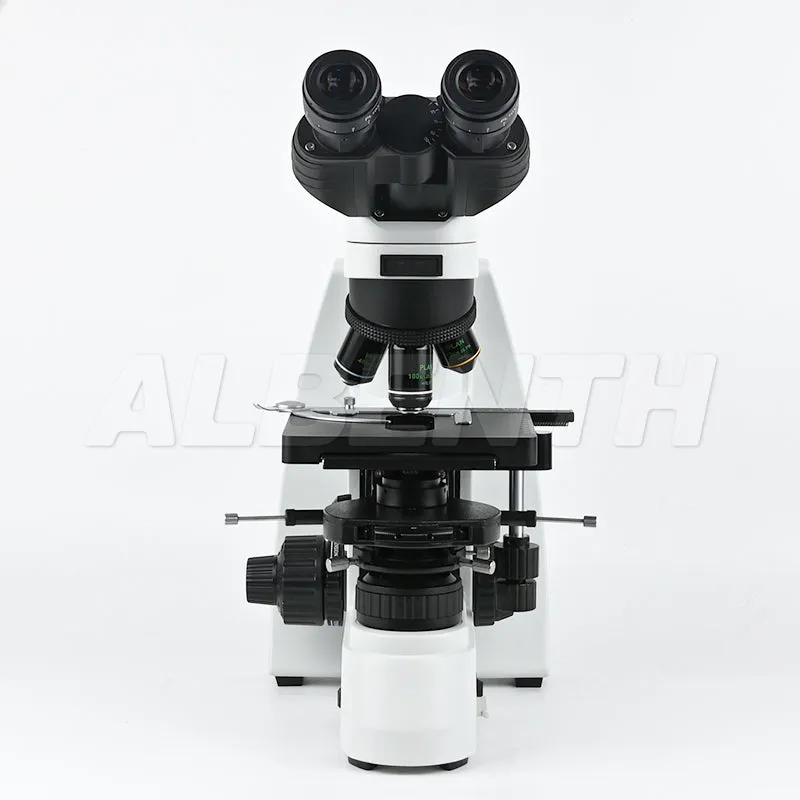

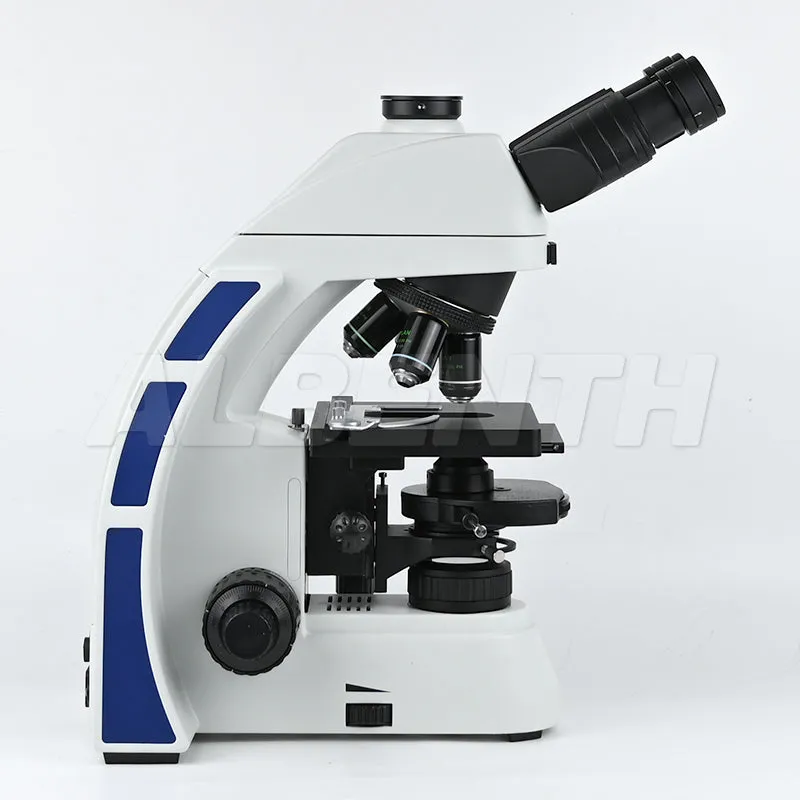

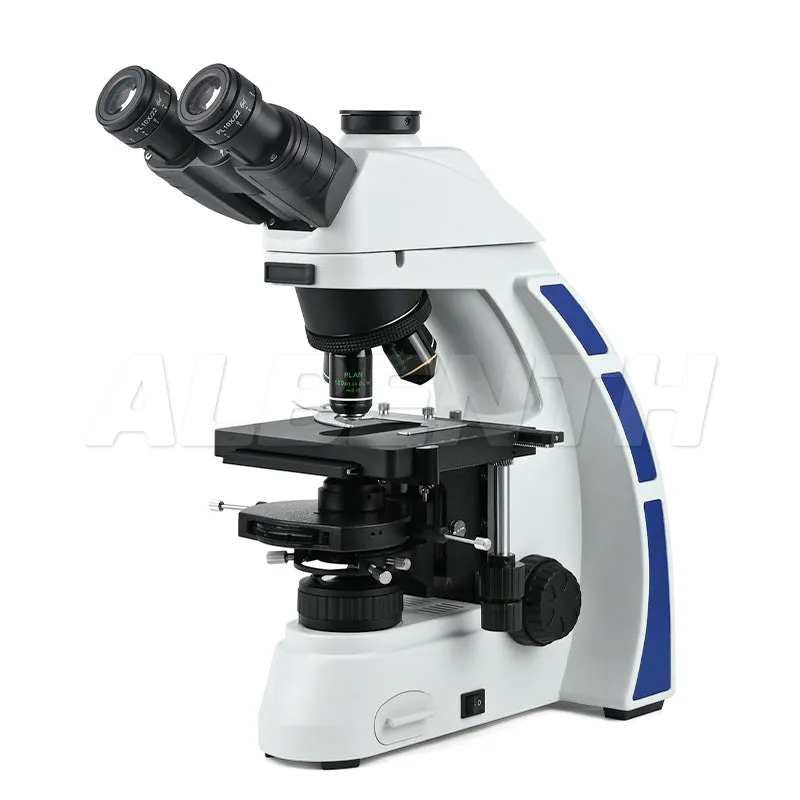

Name: Albenth 10X-1000X Trinocular Plan Phase Phase Contrast Microscope with N.A.1.25 Phase Contrast turret condenser
SKU: 191270

Albenth 10X-1000X Trinocular Plan Phase Phase Contrast Microscope with N.A.1.25 Phase Contrast turret condenser

$ 46.23

$ 0.00

Save: $

Plug:

EUPlug
UKPlug
ULPlug

Unavailable

Please select combo product attributes

The combo subtotal is $,SAVE$

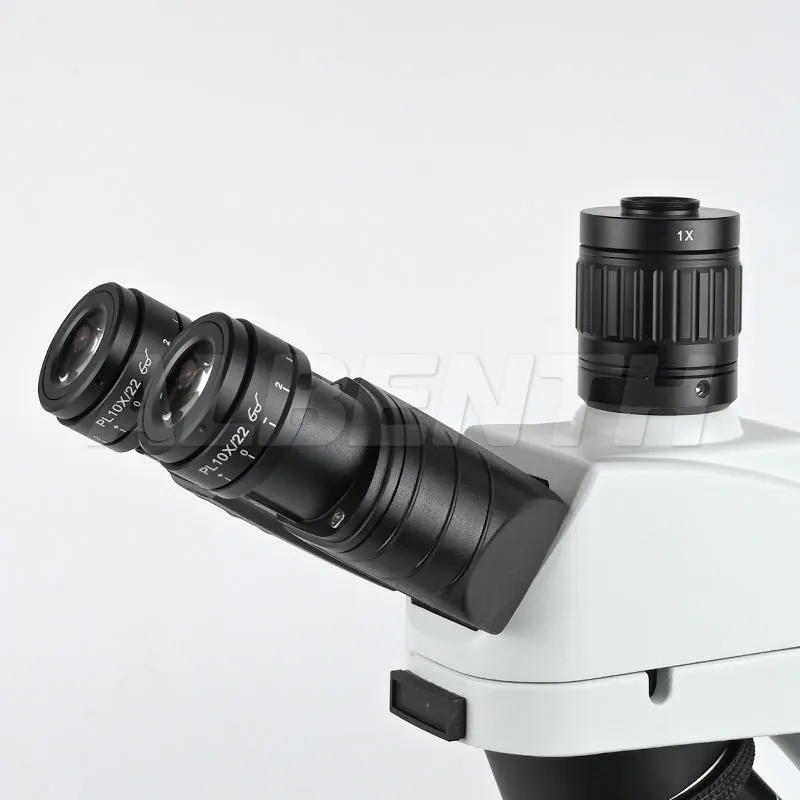

● Head: 30°gemel trinocular viewing head with 360° rotatable eyepiece tube, interpupillary adjustable distance: 50-75mm, fixed spectroscopical ratio R:T=80%: 20%
● Eyepiece: PL10X/22mm, adjustable diopter

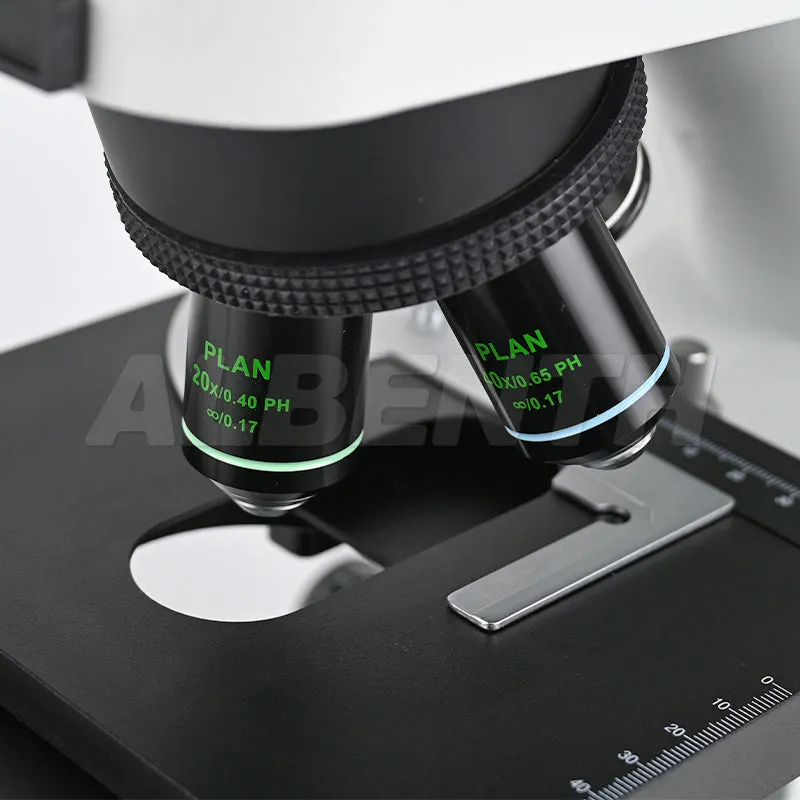

● Plan Phase Contrast Objective:
- 10X/0.25, WD=10.80mm
- 20X/0.40, WD=1.50mm
- 40X/0.65, WD=0.80mm
- 100X/1.25, WD=0.21mm
● Nosepiece: Inwardly inclined, backward quadruple nosepiece

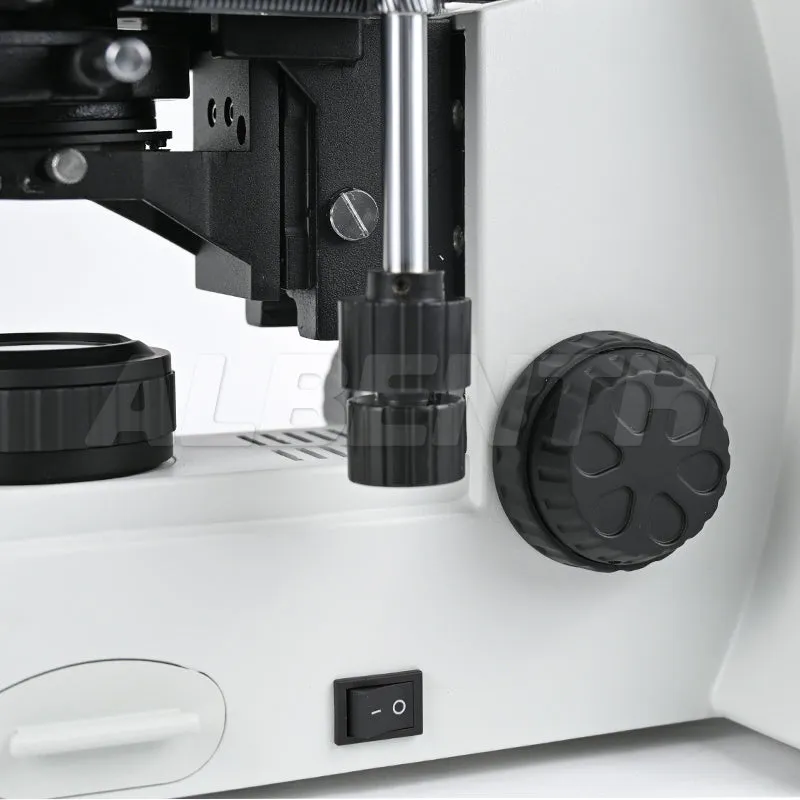

● Focus: Coaxial focus system with upper limited and tension adjustment, coarse range: 30mm, fine precision: 0.002mm, focus height adjustable

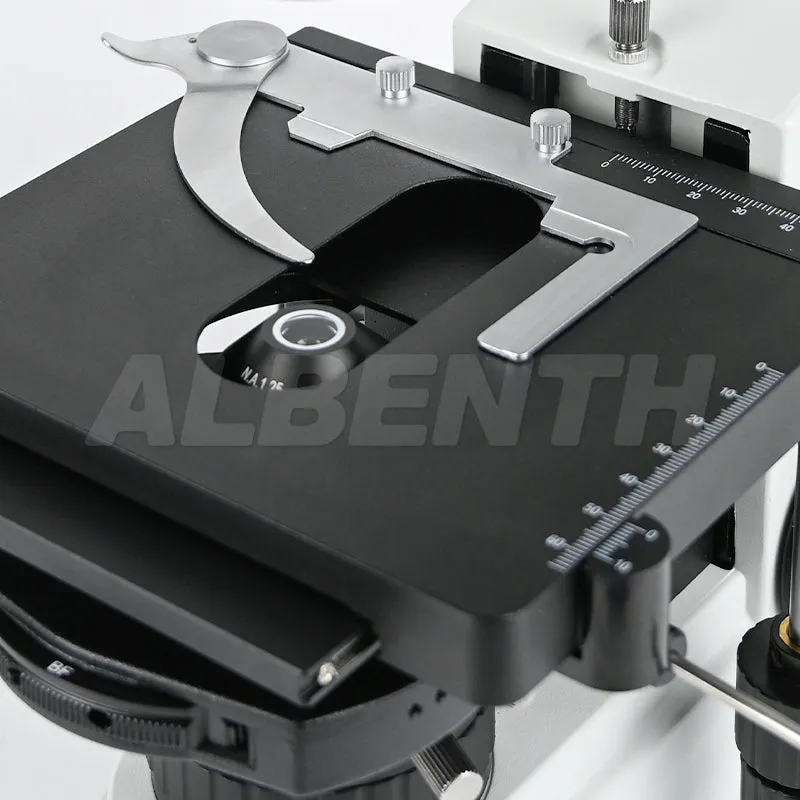

● Stage: 150X140mm Coaxial mechanical stage, travel range 76x50mm, precision: 0.1mm

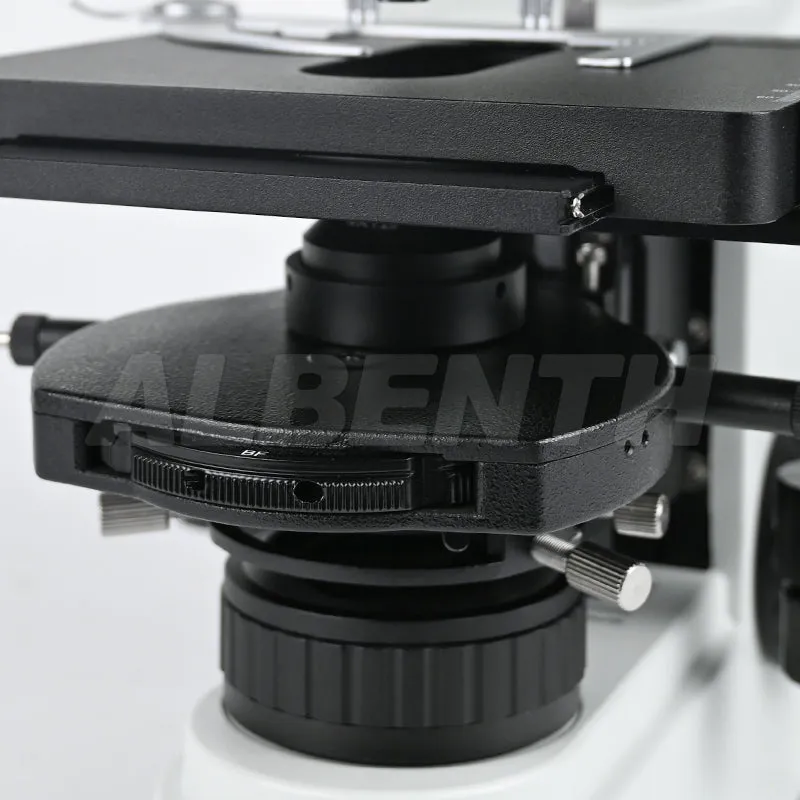

● Condenser: Koehler N.A.1.25 condenser lens group for 10X, 20X, 40X, 100X phase contrast observation

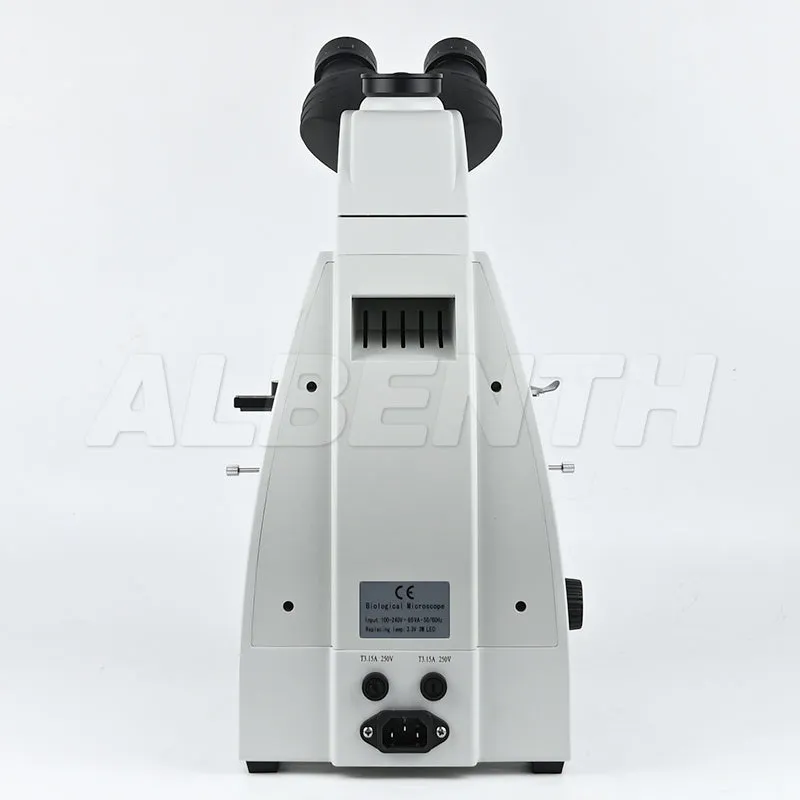

● Illuminator: Main supply 100V-240V, 3W LED lamp with intensity control, fixed center
● Phase Contrast Accessories: Centering telescope (Φ30)

Packing List:
1x Trinocular viewing head
1x Pair of PL10X/22mm eyepieces
1x Plan phase contrast objective 10X, 20X, 40X, 100X
1x Condenser
1x Centering telescope (Φ30)
